GL.compact
The industrial laser microprocessing system GL.compact is designed for applications that require less high dynamics than a reliable positioning of the workpiece for further processing by scanner or spiral drilling optics.
The machine is characterized by a very compact design and high flexibility. Thanks to the use of state-of-the-art beam sources and the possibility to integrate all available hardware options, the complete spectrum of laser microprocessing can be served.
HIGHLIGHTS

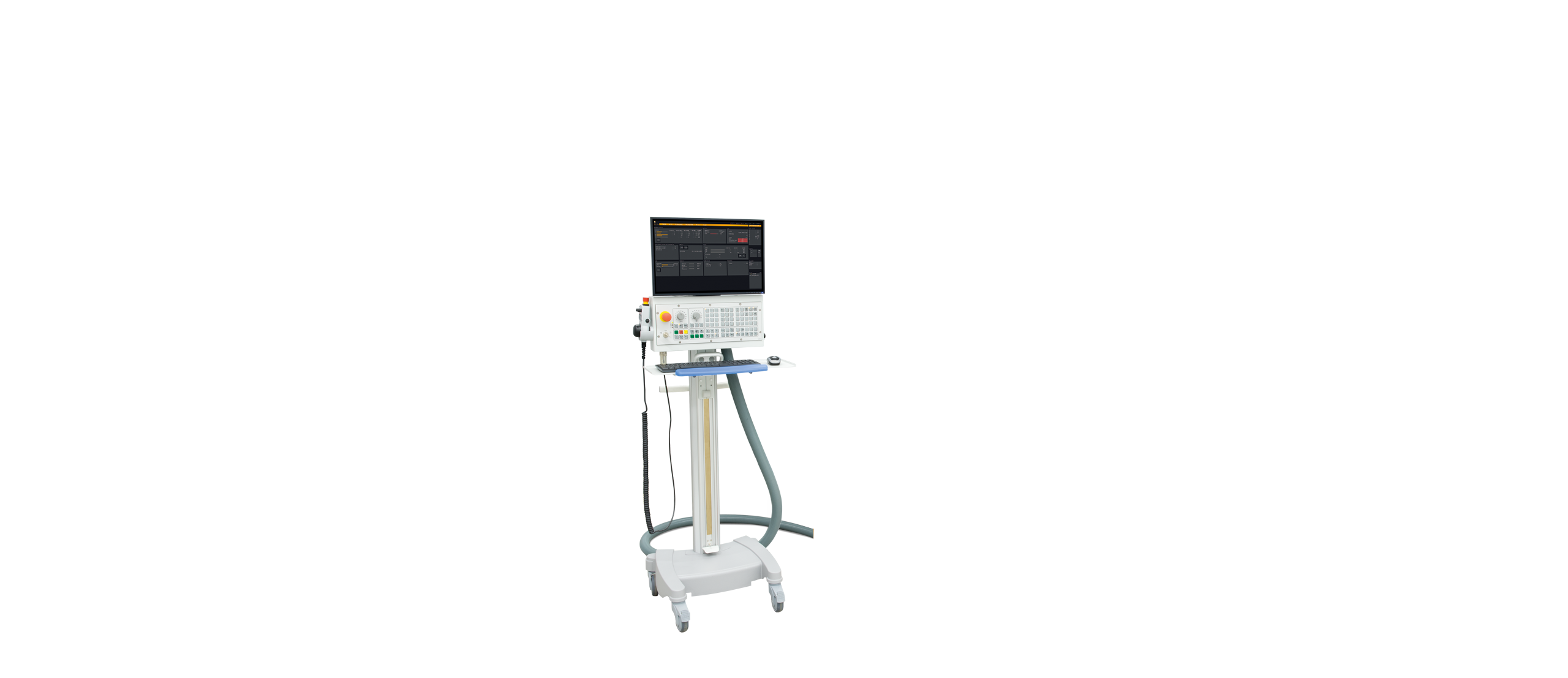

PRODUCT IMAGES
TECHNICAL DETAILS
Here you can find all technical details of the GL.smart including axle arrangement and installation measurement.
| Axis | X | Y | Z | B | C |
|---|---|---|---|---|---|
| Axis type | linear | rotary | |||
| Drive type | direct drive | spindle drive | torque drive | ||
| Bearing | profiled rail guide | M&V-guidance | roller bearing | ||
| Travels [mm] | 490 | 280 | 340 | +/- 90° | endless |
| Speed | 30 m/min | 60 m/min | 700 U/min | ||
| Acceleration | 5 m/s² | 20 m/s² | 160 1/s² | 220 1/s² | |
| Repeatability | < 3 µm | 3 µm | 10 arcsec | ||
| Accuracy | < 6 µm | 4 µm | 20 arcsec | ||
| Perm. comp. weight | < 20 kg | 0,5 kg | |||
| Clamping set-up | drilling pattern | clamping system | |||
| Sound pressure level | ≤ 70 dB | ||||
| Dimensions [mm] | B = 1400 / T = 2600 / H = 2650 | ||||
| Total weight | 3000 kg without supply and without control cabinet | ||||
HARDWARE MODULES
All GL.compact modules.
